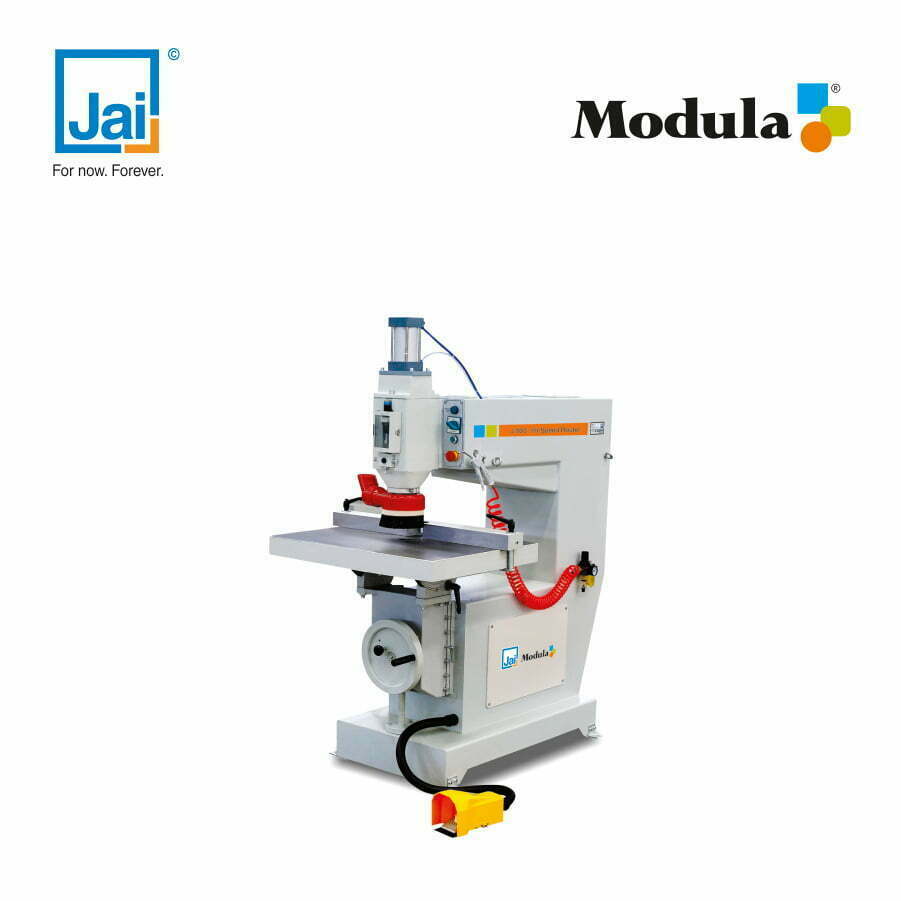

Hi-Speed Router Modula Model No.J-903

Throat Clearance (mm)

750

Guide Pin Diameter (mm)

6 & 12.7

Spindle Speed (RPM)

8000 / 16000

Shank Diameter of Cutter (mm)

12

Spindle Actuation

Pneumatic

Compressed Air Requirement (hp/kg/cm²)

1.5 / 7.0

Machine Dimension (L x B x H) (mm)

1500 x 900 x 1750

Approx. Net Weight (kg)

500

Total Power (HP / RPM)

4 / 1400 & 2800

Model No

J-903

Work Table Size (mm)

800 x 600

Max. Cutting Thickness (mm)

60

Lifting Travel of Work Table (mm)

130

Maximum Table Tilt (degrees)

45°
