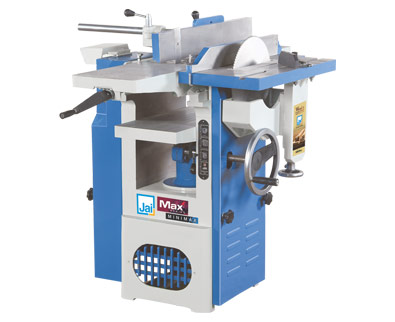

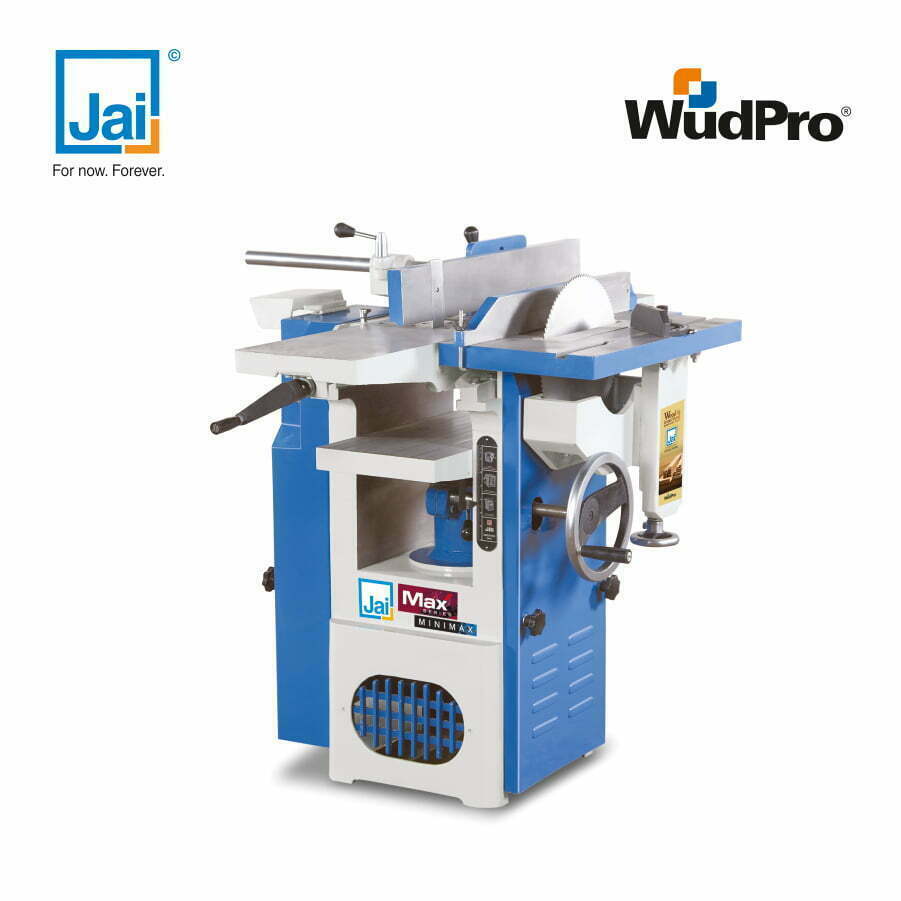

Minimax Model No. J-1010

Model

J-1010

Surfacing Capacity

254 / 10"

Max Planing Width

254 / 10"

Thicknessing Capacity

177 / 7"

Length of Surface Table

1140 / 45"

Rebating Capacity

12.5 / ½"

Length of Thickness Table

635 / 25"

Min. Length of Workpiece for Thicknessing

254 / 10"

Feeding Speed (feet per minute)

24

Cutter Block Diameter

95 / 3.75"

Cutter Block Speed (RPM)

4000

Standard Cutter Block Code No.

2B

Circular Saw Table Size

610 x 315 / 24" x 12"

Up/Down Movement of Circular Saw Table

75 / 3"

Max Circular Saw Diameter

300 / 12"

Power Required (HP / RPM)

3 / 1440

Approximate Weight of Machine (kg)

350
