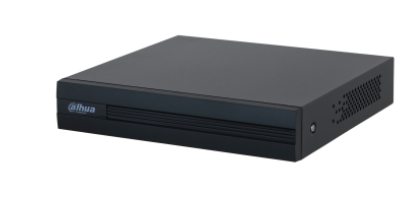

Dahua XVR1B08-I 8 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder

Bit Rate

32 kbps–4096 kbps per channel

Audio Sample Rate

8 KHz, 16 bit per channel

Record Interval

1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s

Audio Compression

G.711A; G.711U; PCM

Operating System

Embedded linux

Audio Bit Rate

64 kbps per channel

Main Processor

Embedded processor

Performance

4 channels

AI Search

Search by target classification (Human, Vehicle)

HDCVI Camera Input

1080p@ 25/30 fps, 720p@25/30 fps

AHD Camera Input

1080p@ 25/30 fps, 720p@ 25/30 fps

Analog Camera Input

8 channels, BNC

TVI Camera Input

1080p@25/30 fps, 720p@25/30 fps

IP Camera Input

8+2 channels, each channel up to 6MP

CVBS Camera Input

PAL/NTSC

Audio In/Out

1/1, RCA

Resolution

1080N; 720p; 960H; D1; CIF

Compression

AI Coding/H.265+/H.265/H.264+/H.264

Two-way Talk

Reuse audio in/out, RCA

Record Mode

Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop

Record Rate

Main Stream: 8-channel: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps) Sub stream: 8-channel: CIF (1 fps–7 fps)
